RDX GRAIN BELT

Request a Quote Find a Dealer

A rigid draper header design that’s cutting edge

The RDX Grain Belt is changing the future of the rigid draper header industry. By starting with the popular AirFLEX^® design, our team of Honey Bee engineers achieved a rigid, single platform draper header that’s faster than ever before.

We’ve reduced hydraulic components, increased the size of the feeder house to add feeding capacity, moved the knives closer to the ground for a super low cut, and added a mechanical drive for simplicity and power.

The Honey Bee RDX Grain Belt: More power when you need it.

Features

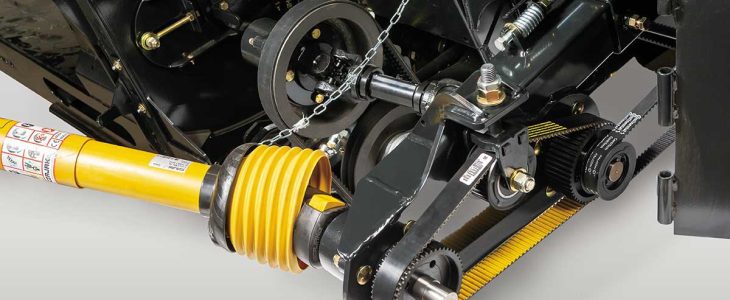

Reversible Mechanical Drive

For maximum convenience and efficiency, you can unplug your combine directly from the cab. The drapers, knife drive and feed auger run reverse with the combine.

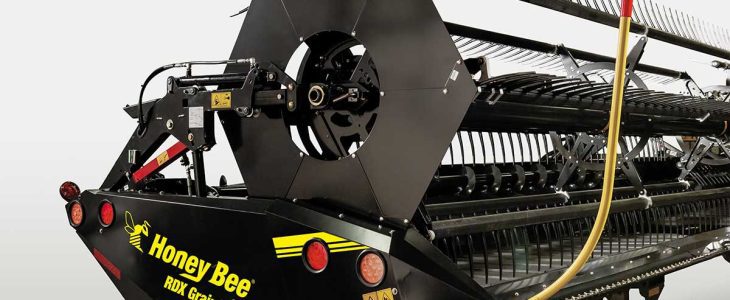

Honey Bee High Performance Reel

The custom built, fully adjustable reel ranges from gentle to aggressive with unlimited finger spacing options to leave no crop behind. The optional cam reel offers a more aggressive grab and a better release of the crop for optimal feeding.

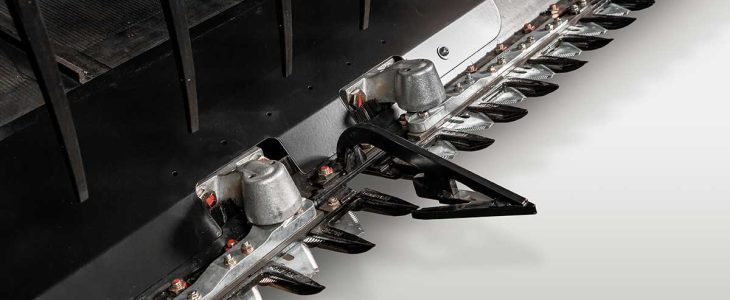

Fully Synchronized, Centrally Driven Knives

The smooth-operating knife drive provides powerful cutting action and increased durability. An optional low-cut system offers a lower profile knife for tough cutting conditions.

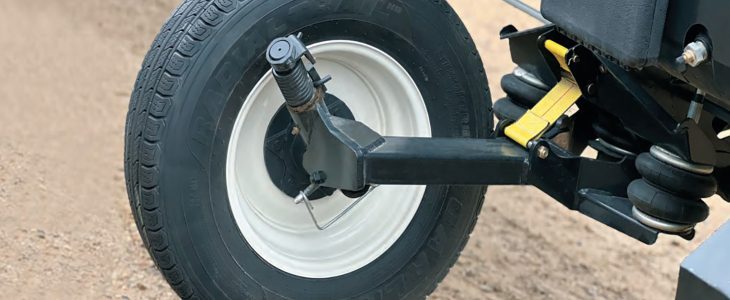

Precision Gauge Wheels

A pneumatic gauge wheel design adjust quicker in the field, from the cab of the combine, and functions better in rough and soft terrain.

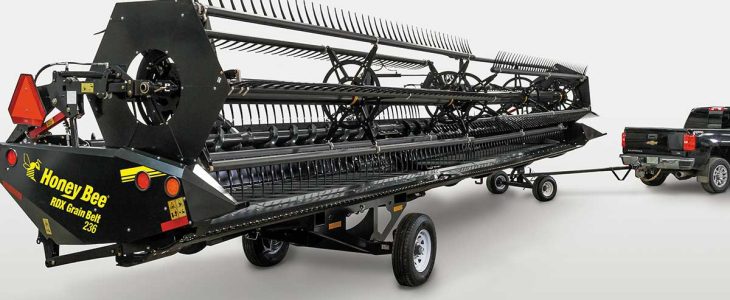

Transport System

Put your header into transport mode in five minutes. The self-aligning transport system is designed to be there when you need it and off for harvest.

Crop Types

See what crops work with the RDX Grain Belt

Download Compare Models PDF

Cereals (Wheat, Barley, Oats)

Canola

Triticale

Sorghum

Hemp

Mustard

Specs

Specifications	RDX225	RDX230	RDX236	RDX240	RDX245	RDX250	RDX260
Width	25'	30'	36'	40'	45'	50'	60'
Operating weight (including reel)	2811 kg / 6199 lbs	3071 kg / 6771 lbs	3379 kg / 7450 lbs	3591 kg / 7916 lbs	3851 kg / 8489 lbs	4111 kg / 9062 lbs	4629 kg / 10207 lbs
Hydraulic System	Hydraulics are limited to the combine reel circuits only
Cutting System	Honey Bee cutting system with SCH sections
Knife Drive	Fully synchronized mechanical knife drive
Draper	New high performance tensioning system and mechanical drive
Center Deck	New high performance tensioning system and mechanical drive
Cross Auger	Crop flow assistance device (Optional)
HB Reel	High strength, high performance reel with multiple crop settings and finger spacing options
Reel Drive	Centre hydraulic reel drive
Transport System	Heavy duty road transport with electric brakes; optional RV or AG plugs
Tires / Wheels / Hubs / Spindles	Standard
Cutterbar Poly Skid	Standard with sectional panels
Combine Adapters	Available for most models of self-propelled combines
Fore/Aft	Standard – using combine functions
Automatic Reel Speed Control	Standard equipment – combine must have reel speed circuit
Gauge Wheels	Standard
Subframe Suspension	Standard
Header Height	Standard – combine needs header height function
Header Tilt	Standard - Hydraulic
Reversible Mechanical Drive	Standard
Maintenance Requirements	2 x 10 hour knife grease / 2 x 10 hour reel grease / 10 x 40 hour drive line grease / 8 x 40 hour general
Honey Bee Low-cut System	Optional
Narrow Finger Spacing	Optional - 2 1/2" every second bat
Skid Shoes	Optional
HB Vertical Shears	Powered by mechanical knife drive (Optional)
